comp cams
Ford Coyote 5.0L Valve Spring Kit; .550" Max Lift
Ford Coyote 5.0L Valve Spring Kit; .550" Max Lift
Regular price
$688.00
Regular price
Sale price
$688.00
Quantity
Couldn't load pickup availability
Creates higher load, higher RPM and more lift capacity than stock parts. Complete kit; includes (32) springs, (32) retainers, (32) seats, and (32) Seals.
- Increased valve control over stock springs (especially at high RPM) thanks to a performance-driven design and proven modular engine track record
- Fits 2011-2014 and 2015-Later; Ford Coyote and Boss 5.0L engines
| Max Lift | Seat Load | Open Load | Rate | Coil Bind | Outer Diameter | Inner Diameter |
| .550" | 93 lbs @ 1.57" | 198 lbs @ 1.02" | 191lbs/in | .952" | Top .959" / Bottom 1.061" | Top .636" / Bottom .738" |

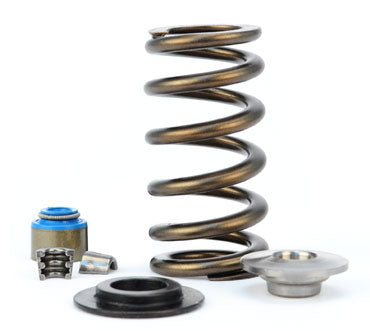

Please note the above image does not show full spring kit.
