comp cams
Ford Coyote 5.0L Valve Spring Kit; .600" Max Lift (Titanium Retainers)
Ford Coyote 5.0L Valve Spring Kit; .600" Max Lift (Titanium Retainers)
Regular price
$980.00
Regular price
Sale price
$980.00
Quantity
Couldn't load pickup availability
Creates higher load, higher RPM and more lift capacity than stock parts. Complete kit; includes (32) springs, (32) retainers, (32) seats, and (32) Seals.
- Increased valve control over stock springs (especially at high RPM) thanks to a performance-driven design and proven modular engine track record
- Fits 2011-2014 and 2015-Later; Ford Coyote and Boss 5.0L engines
| Max Lift | Seat Load | Open Load | Rate | Coil Bind | Outer Diameter | Inner Diameter |
| .600" | 120 lbs @ 1.57" | 275 lbs @ 1.02" | 258 lbs/in | .970" | Top 1.013" / Bottom 1.101" | Top .650" / Bottom .738" |

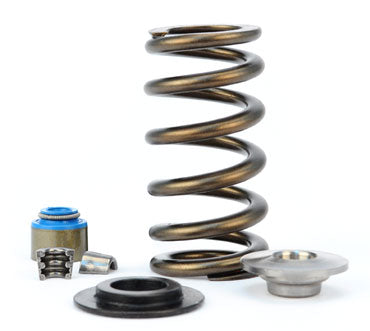

Please note the above image does not show full spring kit.
