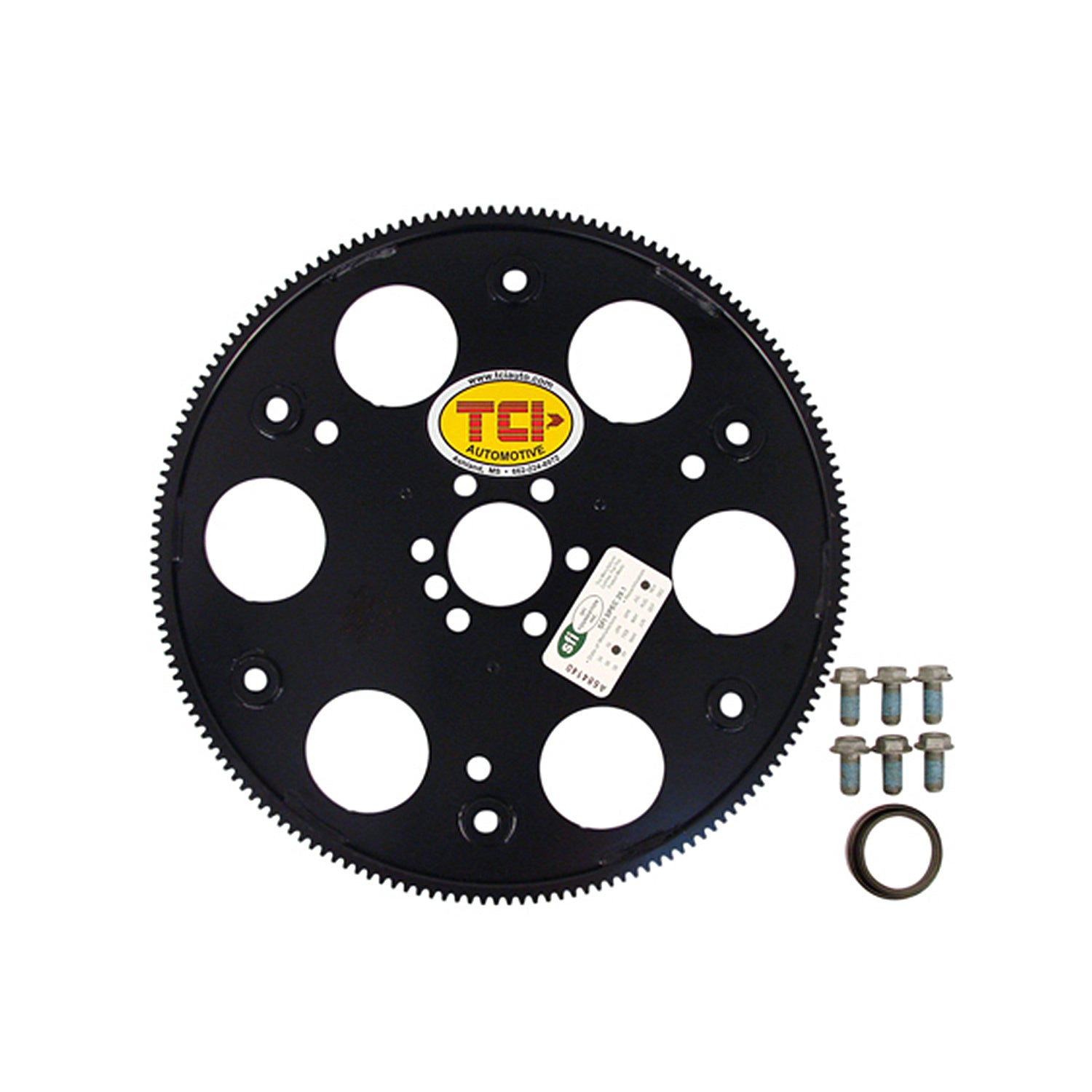

TCI Chevy LS Engine 6-bolt Crank SFI Flexplate 11.5" GM Pattern w-Pilot Ext

SFI 29.1 approved. Fits most LS-series Gen III and Gen IV Chevy 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 liter V8 engines using a 6 bolt crankshaft flange. Drilled for 11.5" wide GM converter bolt pattern using 6 holes. Includes a converter pilot adapter that is needed if you are using a converter originally made to fit older small or big block Chevy (non-LS). Flexplate is .035" thicker than stock and the starter ring is welded to both sides of the flexplate for additional strength. Constructed from a high tensile strength material this flexplate resists elongation and cracking. All 168 tooth flexplates are sized for stock 3/8" mounting bolts and can be easily drilled for 7/16" diameter high performance torque converter applications. for 4L60 or TH350 applications that have an 10.75" or 11.062" torque converter bolt pattern, use P/N 399753. This will not fit 1999-2000 6.0L applications with 0.400 in. extended crank flange and came with flat flexplate. This will not fit 1999-2000 4.8L applications that originally came with a manual transmission.
